Lab Equipment Power AC EMC Special Single Phase EMI Filters With Wire Leads

Product Categories

Shenzhen VIIP Electronics Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Lab Equipment Power AC EMC Special Single Phase EMI Filters With Wire Leads

Name: Lab Equipment Power AC EMC Special Single Phase EMI Filters With Wire Leads
Brand: VIIP
Price: 1 USD

Brand Name : VIIP

Model Number : VIP4-1A-10(10271)

Certification : CE ROHS,CE CQC,ISO TUV

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000 pcs within 10-15 days

Packaging Details : 33*33*18

Type : EMI FILTER

Rated current : 10A

Rated voltage : 110/250VAC

Case : Metal

Filter Usage : lab applications

Contact Now

Power AC EMC Special Single Phase EMI Filters With Wire Leads For Lab Equipment

emi filter Quick Detail:

Place of Origin: China	Input Impedance: 50Ω
Model Number: VIP4-1A-10(10271)	Rated current: 10A
Brand Name: VIIP	Rated voltage: 110V/250V
Type:AC EMI Filter	Insertion Loss: 30-100dB
Function: Low Pass	Line To Line: 1760VDC
Nominal Center Frequency: 150KHZ~30MHZ	Line to ground: 2000VAC
Port: SHENZHEN	Certificate: ISO9001 CE ROHS UL TUV
MOQ: 1PCS	Operating Frequency: 50/60HZ
Package Type: Surface Mount	Temperature Range: 25 / 085 / 21

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

Power EMC Special Single Phase EMI Filters For Lab equipment Specifications:

features for single phase emi filters

1. Rated current: 0.5A-300A

2.Various terminals: wire, solder lug, stud, terminal block ,etc

3.Optional medical versions(H type)

4.Custom specific versions are available on request

General purpose AC filters with good attenuation frequency range 150KHz-30MHz

Compact structure, high performance-cost ratio, easy to install,safe and reliable

VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current

High voltage versions above 380VAC are also available

Applications:

Electrical & electronic equipment

Consumer goods

medical equipment

datacome equipment

Lab Equipment Power AC EMC Special Single Phase EMI Filters With Wire Leads

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.

Tabulates

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP1-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	SOA	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Mechanical Dimension(Unit: mm)

Lab Equipment Power AC EMC Special Single Phase EMI Filters With Wire Leads

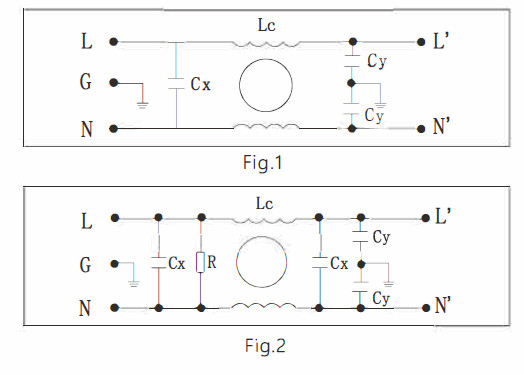

Electrical schematic:
